CHK-200Y4、300Y4、400Y4、500Y4、600Y4 Open-loop Hall current sensor

Description

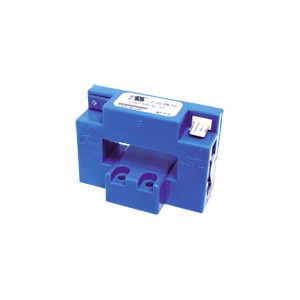

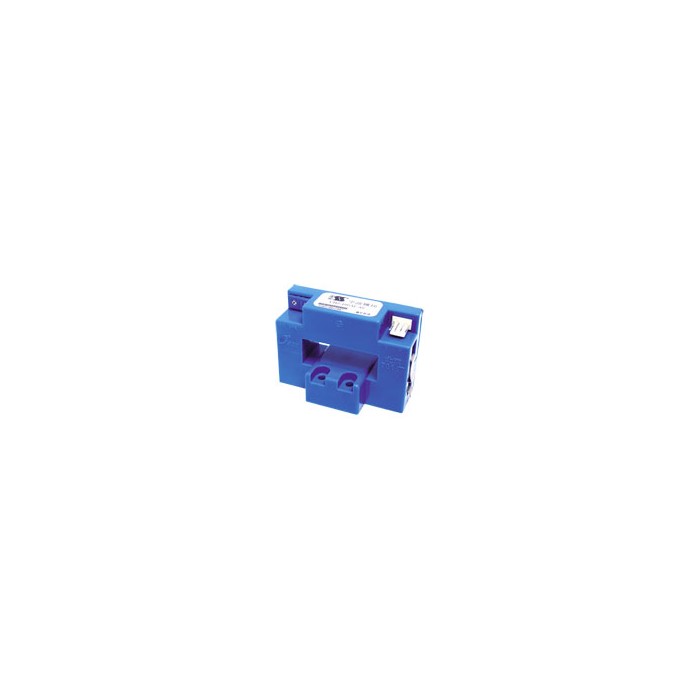

The SENSOR Module CHK-Y4 is an open loop Hall current sensor to measure 200A…600A DC, AC or pulsed currents with a galvanic isolation between the primary and secondary circuits. The aperture can be opened by a structure of a split core for easy installation.

Open-loop Hall Current Sensor:

Type

Nominal current

Output voltage

Accuracy

Supply voltage

Aperture

I_N（A）

V_M（V）

X（%）

Vc（V）

mm/split core

CHK-200Y4

200

±4

±1.0%

±12~15

15×41.5

CHK-300Y4

300

CHK-400Y4

400

CHK-500Y5

500

CHK-600Y4

600

Specifications:

Principle

Open loop Hall effect principle

Input current

200…600A（DC、AC、Pulsed current）

Output voltage

±4V；The waveform of the output voltage at the secondary side is just the same with the waveform of the input current at primary side.

Frequency

DC~20KHz

Accuracy

±1.0%

Response time

<10μS

Linearity

<1.0%

Supply voltage

±12V...15V（±5%）

Consumption

25mA

Isolation voltage

Between primary and secondary circuit: 5KV RMS/50Hz/1min.

Operating temp.

-10℃ …+85℃

Applications

The sensors are used in the industry field of power supplies, welding machines, converters,

industry auto-control, motor drives, electronic power system, railways, rectifiers systems etc.

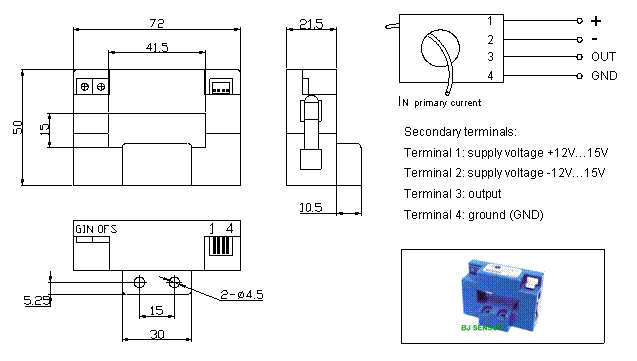

Dimensions(mm) & Connection:

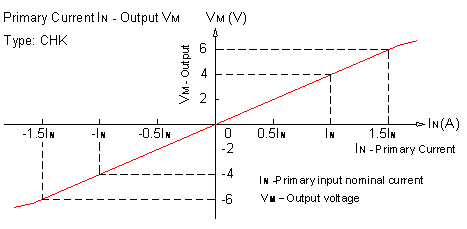

Typical Applications:
