CHF-50H、100H、200H、300H、400H、500H、600H  Open-loop Hall current transducer

Description

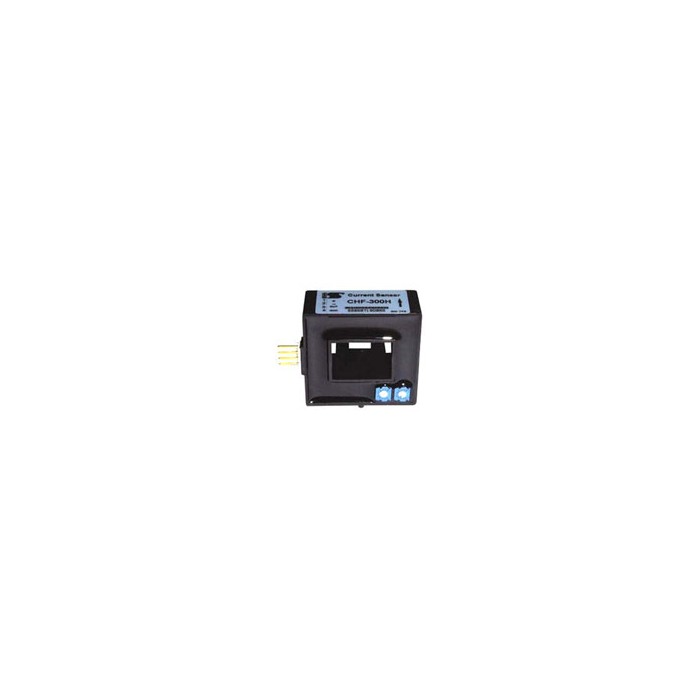

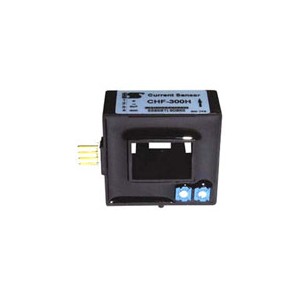

The SENSOR Module CHF-H is an open loop Hall current sensor to measure 50A…600A DC, AC or pulsed currents with a galvanic isolation between the primary and secondary circuits.

Open-loop Hall Current Sensor:

Type

Nominal current

Output voltage

Accuracy

Supply voltage

Aperture

I_N（A）

V_M（V）

X（%）

Vc（V）

mm

CHF-50H

50

±4

±1.0%

±12~15

16×22

CHF-100H

100

CHF-200H

200

CHF-300H

300

CHF-400H

400

CHF-500H

500

CHF-600H

600

Specifications:

Principle

Open loop Hall effect principle

Input current

50…600A（DC、AC、Pulsed current）

Output voltage

±4V

Frequency

DC~20KHz

Accuracy

1.0%

Response time

<10μS

Linearity

1.0%

Supply voltage

±12V...15V（±5%）

Consumption

25mA

Isolation voltage

Between primary and secondary circuit: 3KV RMS/50Hz/1min.

Operating temp.

-10℃ …+85℃

Applications

The sensors are used in the industry field of power supplies, welding machines, converters,

industry auto-control, motor drives, electronic power system, railways, rectifiers systems etc.

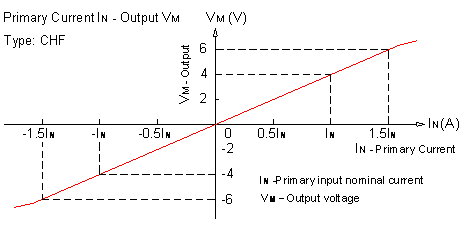

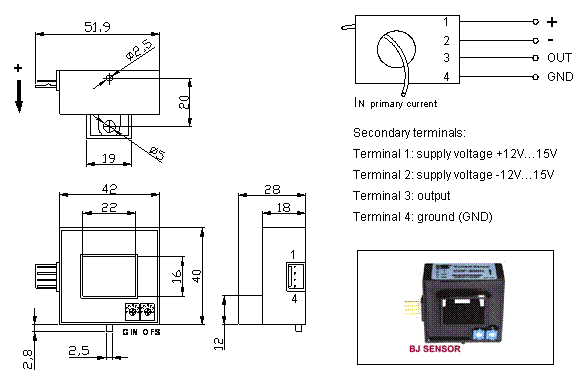

Dimensions(mm) & Connection:

Typical Applications:
