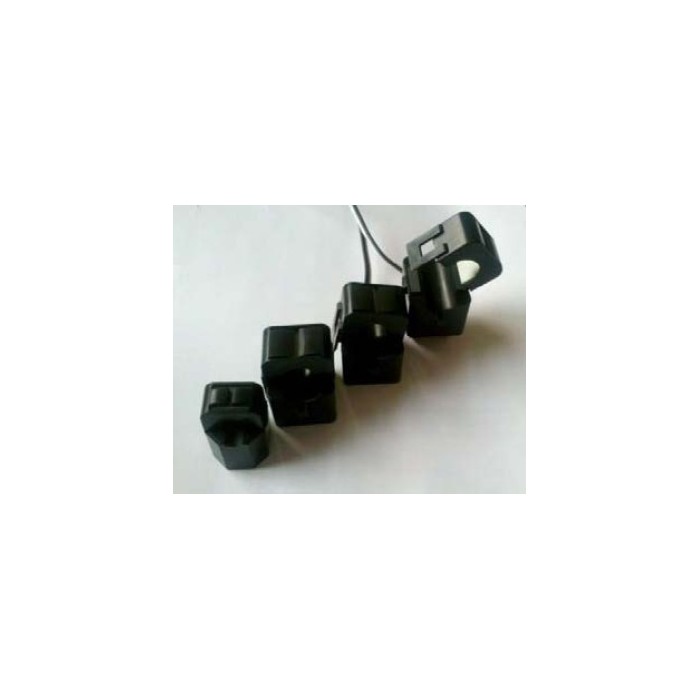

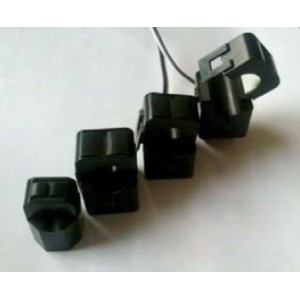

Split Core Current Sensor

SCTK681A  Series

SCTK681A series retro-fit (split-core) current Sensor has been specially designed to facilitate their installation in new or already existing net works. They may be installed without opening any cable or bus-bar circuit. An internal precision resistor across the secondary winding of the CT provides a low safe voltage output. It can save time and the installation costs.

‹ Split Core CT Current Sensor Features
  1.The structure of the self-locking, safe, easy to install, portable
  2.Wide inner window, allowing clamping of big cables or bus-bars
  3.Wide range of sizes to accommodate all the existing installations
Split Core Current Transformers Applications
  1.Current measurement, monitoring and protection for electrical wiring and equipment.
  2.Current and power measurement for electric motors, lighting, air compressor,heating and ventilation system, air-         condition equipment and automation – control system.
  3.Current, power and energy monitoring device.
  4. Relay protection device.

‹ Split Core Current TransformersCircuit connection diagram

‹ Split Core Current Transformers Technique Index

‹ Split Core Current Transformers Type Selection（Output: mA/V）

 Split Core Current Transformers Type Selection（Output: 1A/5A ）
