Production Description
|

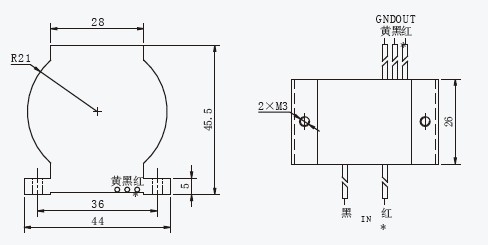

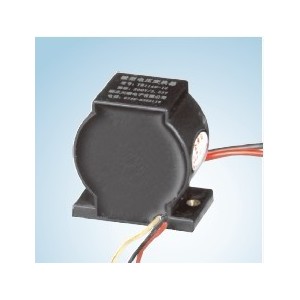

Voltage Output Current converter used for wave recording.During use, output type may be the output type with lead wire or the output with connector.
|
Performance Indicators
|
Parameter
|
Symbol
|
Indicator
|
Rated Input current
|
Vn
|
0~380V
|
Secondary output voltage
|
VO
|
0~10V
|
Precision level
|
ρ
|
0.1 level
|
Maximum overload current
|
-
|
2Vn
|
Withstand voltage
|
Vd
|
2500V/min
|
Dielectric strength
|
-
|
500MΩ/500V/min
|
Working temperature
|
Ta
|
-25℃ ~ +65℃
|
Storage temperature
|
Ts
|
-40℃ ~ +80℃
|
Working frequency
|
f
|
45Hz ~1500Hz
|
Relative Humidity
|
-
|
<90%
|
Enclosure material
|
-
|
Fire retardation PBT/Fire retardation ABS
|
Product Features
|
Excellent linearity, excellent consistency, wide working range.
|
Simple circuit, the external working power supply is not necessary, reliable run.
|
Current voltage can be converted to be in place at one time, voltage is outputted directly.
|
Product Application
|
|
Main specifications
|
Input
|
Output
|
Load
|
Precision
|
Phase difference
|
input voltage overload multiplier
|
100V
|
3.53V
|
>5KΩ
|
0.1
|
<10ˊ
|
1.2
|
100V
|
7.07V
|
>5KΩ
|
0.1
|
<10ˊ
|
1.2
|
100V
|
4V
|
>5KΩ
|
0.1
|
<10ˊ
|
1.2
|
100V
|
6V
|
>5KΩ
|
0.1
|
<10ˊ
|
1.2
|
120V
|
7.07V
|
>5KΩ
|
0.1
|
<10ˊ
|
1.2
|
150V
|
4V
|
>5KΩ
|
0.1
|
<10ˊ
|
1.2
|
200V
|
3.53V
|
>5KΩ
|
0.1
|
<10ˊ
|
1.2
|
300V
|
3.53V
|
>5KΩ
|
0.1
|
<10ˊ
|
1.2
|
380V
|
5V
|
>5KΩ
|
0.1
|
<10ˊ
|
1.2
|
Remarks
|
Above specifications are stock, also, they can be designed based on customers requirements.
|
