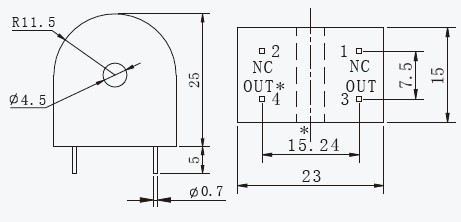

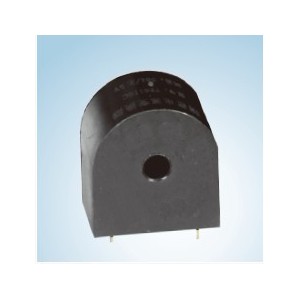

Production Description

Voltage output type current converter used for protection.

Performance Indicators

Parameter

Symbol

Indicator

Rated Input current

In

0~10A

Secondary output

VO

0~10V

Precision level

ρ

0.1level

Maximum overload multiple

－

60 times

Phase difference of the rated site

δ

0ˊ~10ˊ

Withstand voltage

Vd

3000V/min

Dielectric strength

－

1000MΩ/500V/min

Working temperature

Ta

-25℃ ~ +65℃

Storage temperature

Ts

-40℃ ~ +80℃

Working frequency

f

45Hz ~1250Hz

Relative Humidity

－

<90%

Enclosure material

－

Fire retardation PBT/Fire retardation ABS

Product Features

High precision, excellent consistency.

Simple circuit, the external working power supply is not necessary, reliable run.

Excellent overload capacity. Capable of enduring the transient blast of 10-60 times of the rated current without waveform distortion with undersaturation.

Current voltage is converted to be in place at one time, and the detected voltage is converted separately into voltage output. outputted directly.

Product Application

Main specifications

 specification

Input current  rated value（A）

Outputvoltage  rated value（V）

Precision

Angular difference

Maximum overload current （A）

20A/3.53V

1

0.3535

0.1

<10ˊ

20

50A/4V

5

0.4

0.1

<10ˊ

50

100A/3.53V

5

0.1765

0.1

<10ˊ

100

100A/7.07V

5

0.3535

0.1

<10ˊ

100

100A/10V

5

0.5

0.1

<10ˊ

100

150A/3.53V

5

0.1177

0.1

<10ˊ

150

200A/7.07V

5

0.176

0.1

<10ˊ

200

Remarks

Above specifications are stock, also, they can be designed based on customers requirements.
