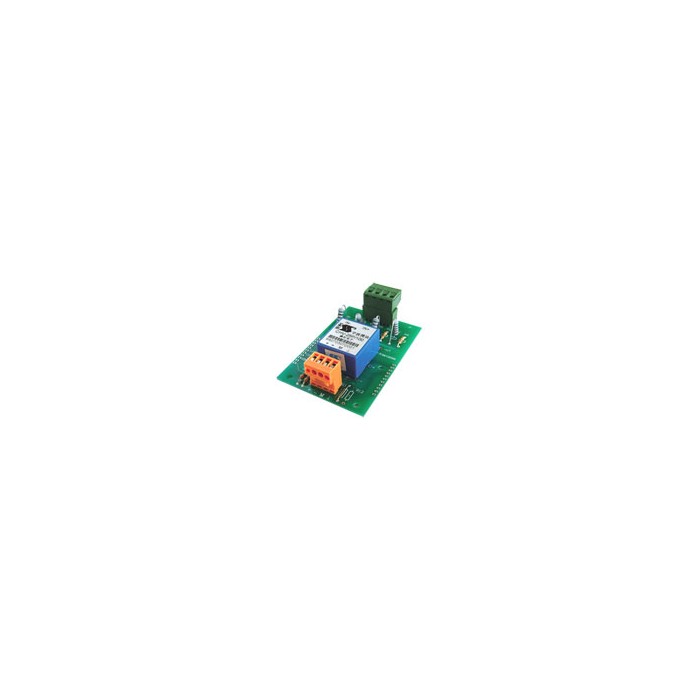

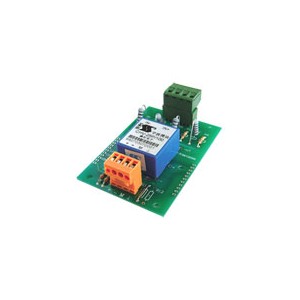

CHV-25P/50、100、200、400、600 Closed-loop Hall Voltage Transducer

Description

The SENSOR Module CHV-25P/50…600 is a closed loop Hall voltage sensor to measure 50…600VDC, AC or pulsed voltages with a galvanic isolation between the primary and secondary circuits.

Closed-loop Hall Voltage Sensor:（Output 0~5V）

Type

Nominal voltage

Output voltage

Accuracy

Supply voltage

Aperture

V_N（V）

V_M（V）

X（%）

Vc（V）

mm

CHV-25P/50

50

5

±1.0%

±12~15

Terminals

CHV-25P/100

100

CHV-25P/200

200

CHV-25P/400

400

CHV-25P/600

600

Hall Voltage Sensor:（Output 0~25mA）

Type

Nominal voltage

Output current

Accuracy

Supply voltage

Aperture

V_N（V）

I_M（mA）

X（%）

Vc（V）

mm

CHV-25P/50A

50

25

±1.0%

±12~15

Terminals

CHV-25P/100A

100

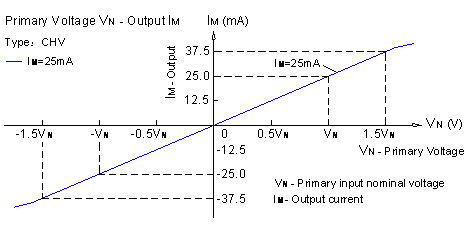

Specifications:

Principle

Closed loop Hall effect principle

Input voltage

50V…600V（DC、AC、Pulsed voltage）

Output

5V/25mA

Frequency

DC~20KHz

Accuracy

±1.0%

Response time

40μS

Linearity

<0.1%

Supply voltage

±12V~15V（±5%）

Consumption

10mA+I_M（Output current）

Isolation voltage

Between primary and secondary circuit: 2.5KV RMS/50Hz/1min.

Operating temp.

0℃ …+70℃

Applications

The sensors are used in the industry field of power supplies, welding machines, converters,

industry auto-control, motor drives, electronic power system, railways, rectifiers systems etc.

Dimensions(mm) & Connection:

Typical Applications:
