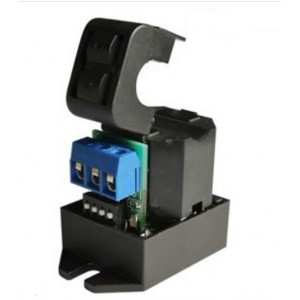

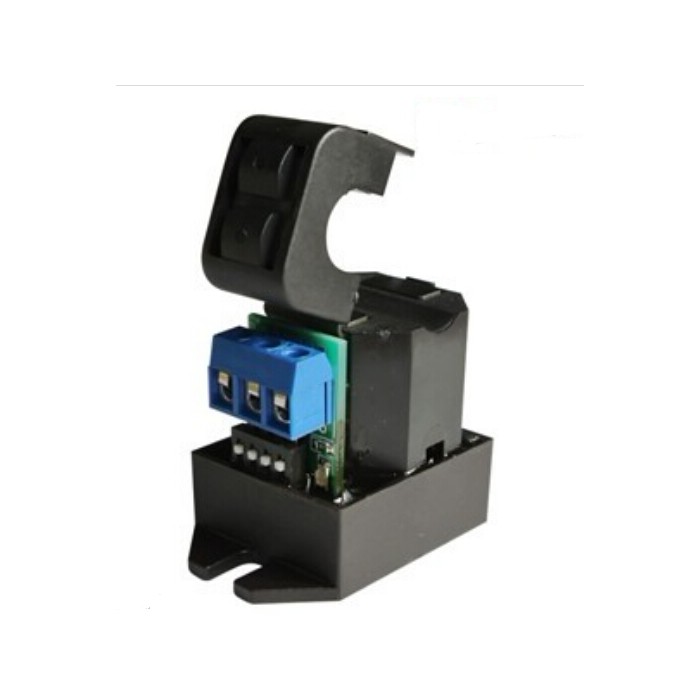

0-5V 0-10V 4-20mA Split Core Current Transducer/Transformer/Transmitter/Transmission

Specifications
Input current: 0 to 80A AC
Output Signal: 0-5V DC, 0-10V DC; 4-20mA DC
Measurement Accuracy: +/- 2%
Linearity: +/- 2%
Temperature drift: <5%
Auxiliary power supply: DC12-20V
Maximum Output Signal: 10.5V
Status indication: LED brightness intensifies as
Current increases
Operating Temperature: -30° C to +65° C
Storage Temperature: -40° C to +85° C
Operating Humidity: 10 to 95 %RH non-condensing
Storage Humidity: 10 to 95 %RH non-condensing

Drawing size
