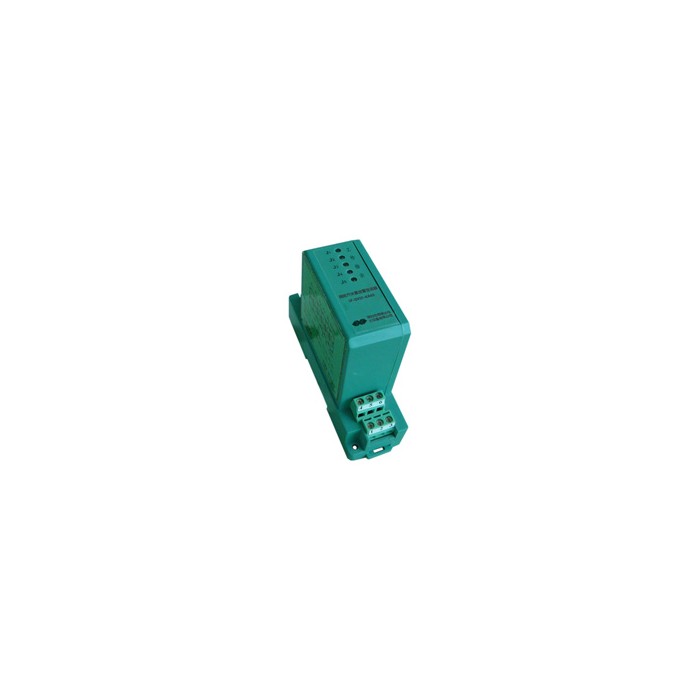

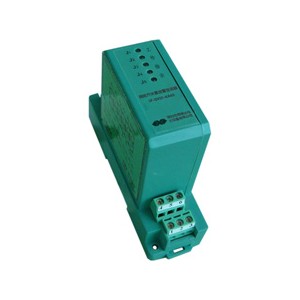

SA45 Voltage Offside Alarm Transducer

*Transforms the high electric switching state into low electric switching state.
*Safety, faster,high accuracy
*No jitter phenomenon of conventional relay contacts
*Input, output photoelectric isolation, ensures the safety of the telecontrol equipment
* Indicator light marks working status of any way, intuitive and clear
*Standard din rail(35mm) mounting
*Dimension(mm): 106(L)×31.5(W)×77(H）

Specification：

*Input Range:0~500V can choose 220V,110V,48V

*Output Characteristics：>60% conducting,input current≥10mA, <50% cutoff

*Isolation Withstanding Voltage：AC2.0KV/min*1mA between input/output

*Isolation Resistance：≥20MΩ(DC500V)

*Load Capacity：1.5 times current continuous

*Working Environment：-10℃~50℃，20%~90% without condensation

*Storage Environment：-40℃~70℃，20%~95% without condensation

Model：

Dimension：

Connection:
