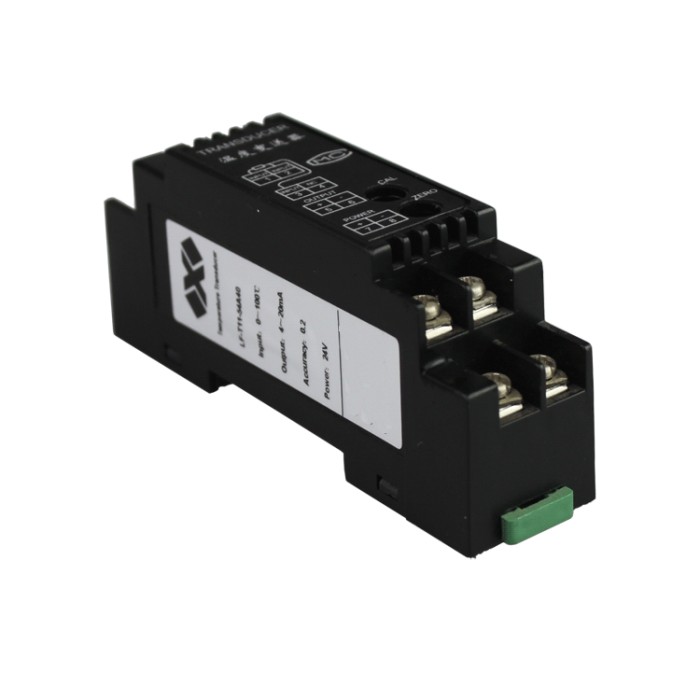

SA40 Temperature Transducer

*Transforms the measured thermal resistance signal into the 1-way standard DC voltage or DC current output according to the linear proportion
*Three isolations, high reliability
*Excellent anti-interference ability and high accuracy
*Standard din rail(35mm) mounting
*It widely apply to all kinds of temperature isolation detection system in industrial field
*Dimension(mm): 96(L)×24(W)×40(H）

Specification：

*Standards：IEC688:1992 QB/LF2007-1

*Input Range：-40~500℃ can choose 0~100℃，0~200℃ etc

*Accuracy Grade：≤0.2%.F.S

*Temperature Characteristics：≤100PPM/℃(0~50℃)

*Power Consumption：≤1VA

*Isolation Withstanding Voltage：AC2.0KV/min*1mA between input/output/ power

*Response Time：≤350mS

*Working Environment：-10℃~50℃，20%~90% without condensation

*Storage Environment：-40℃~70℃，20%~95% without condensation

Model：

Dimension：

Connection:
