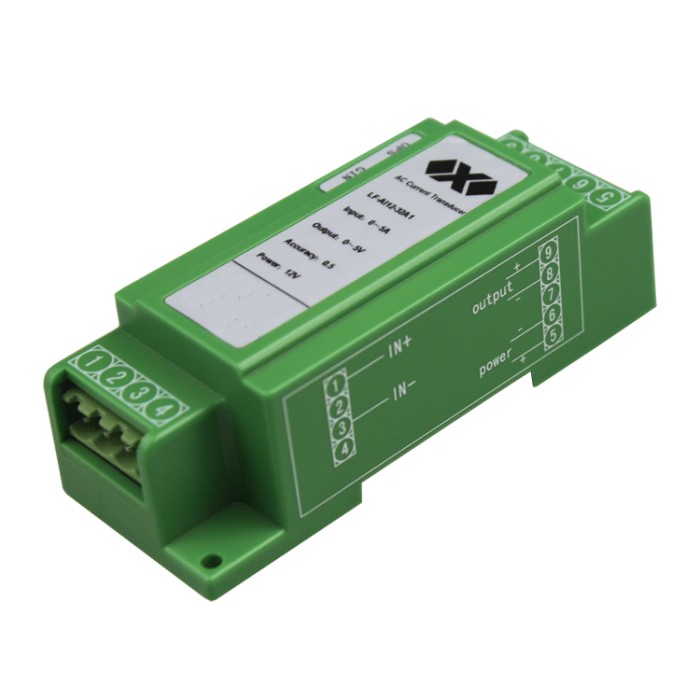

A1 1-phase AC Current Transducer

*Transforms the measured 1-phase AC current into the standard DC
voltage or DC current output according to the linear proportion
*Low power consumption, three isolations, high reliability
*Excellent anti-interference ability and high accuracy (0.5%)
*Plug terminal input, standard din rail(35mm) mounting
*It widely applies to all kinds of industrial current online detection system
*Small size, dimension(mm):95(L)×37(W)×32(H)

Specification：

* Standards：IEC688：1992，QB/LF2007-1

* Input Range：0~5A can choose 0~5A,0~1A etc

* Accuracy Grade：≤0.5%.F.S

*Temperature Characteristics：≤50PPM/℃(0~50℃)

* Power Consumption：≤30mA+output current

* Working Stability:annual change＜0.2%

* Isolation Withstanding Voltage ：AC2.0KV/min*1mA between input/output/case

* Isolation Resistance：≥20MΩ(DC500V)

* Impulse Voltage：5KV(peak value),1.2/50uS

* Response Time：≤300mS

* Overload Capacity：2 times current continuous

* Working Environment：-10℃~50℃，20%~90%without condensation

* Storage Environment：-40℃~70℃，20%~95%without condensation

Model：

Dimension：

Connection:
