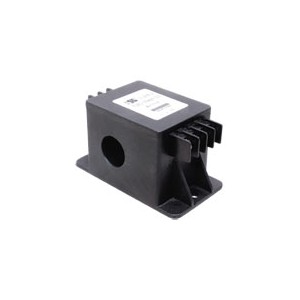

Sensor Module

CHZ-100VS、200VS、300VS、400VS、500VS

Description

The SENSOR Module CHZ-VS is a DC voltage transducer to measure 100V…500V DC voltages with a galvanic isolation between the primary and secondary circuits. The output of the transduceris a standard DC signal.

DC Voltage Transducer（Output 0…20mA）:

Type

Nominal voltage

Output current

Accuracy

Supply voltage

Aperture

V_N（V）

I_M（mA）

X（%）

Vc（V）

mm

CHZ-100VS/A0

100

0…20

±1.0%

±15~24

Terminals

CHZ-200VS/A0

200

CHZ-300VS/A0

300

CHZ-400VS/A0

400

CHZ-500VS/A0

500

DC Voltage Transducer（Output 4…20mA）:

Type

Nominal voltage

Output current

Accuracy

Supply voltage

Aperture

V_N（V）

I_M（mA）

X（%）

Vc（V）

mm

CHZ-100VS/A1

100

4…20

±1.0%

±15~24

Terminals

CHZ-200VS/A1

200

CHZ-300VS/A1

300

CHZ-400VS/A1

400

CHZ-500VS/A1

500

DC Voltage Transducer（Output 0…5V）:

Type

Nominal voltage

Output voltage

Accuracy

Supply voltage

Aperture

V_N（V）

V_M（V）

X（%）

Vc（V）

mm

CHZ-100VS/V0

100

0…5

±1.0%

±15~24

Terminals

CHZ-200VS/V0

200

CHZ-300VS/V0

300

CHZ-400VS/V0

400

CHZ-500VS/V0

500

DC Voltage Transducer（Output 1…5V）:

Type

Nominal voltage

Output voltage

Accuracy

Supply voltage

Aperture

V_N（V）

V_M（V）

X（%）

Vc（V）

mm

CHZ-100VS/V1

100

1…5

±1.0%

±15~24

Terminals

CHZ-200VS/V1

200

CHZ-300VS/V1

300

CHZ-400VS/V1

400

CHZ-500VS/V1

500

Specifications:

Principle

Hall effect sensor + Transducer

Input voltage

100V…500V（DC）

Output

One of A0=0~20mA、A1=4~20mA、V0=0~5V、V1=1~5V（DC）

Frequency

DC

Accuracy

1.0%

Response time

<0.35S

Linearity

0 .5%

Supply voltage

±15V…24V（±5%）

Consumption

30mA+I_M（Output current）

Isolation voltage

Between primary and secondary circuit: 2.5KV RMS/50Hz/1min.

Operating temp.

-25℃ …+85℃

Applications

The sensors are used in the industry field of power supplies, welding machines, converters,

industry auto-control, motor drives, electronic power system, railways, rectifiers systems etc.

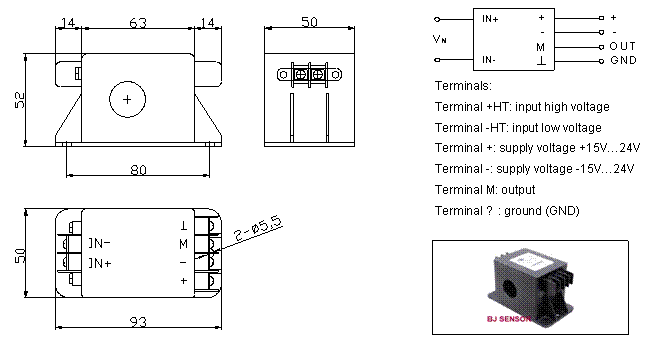

Dimensions(mm) & Connection:
