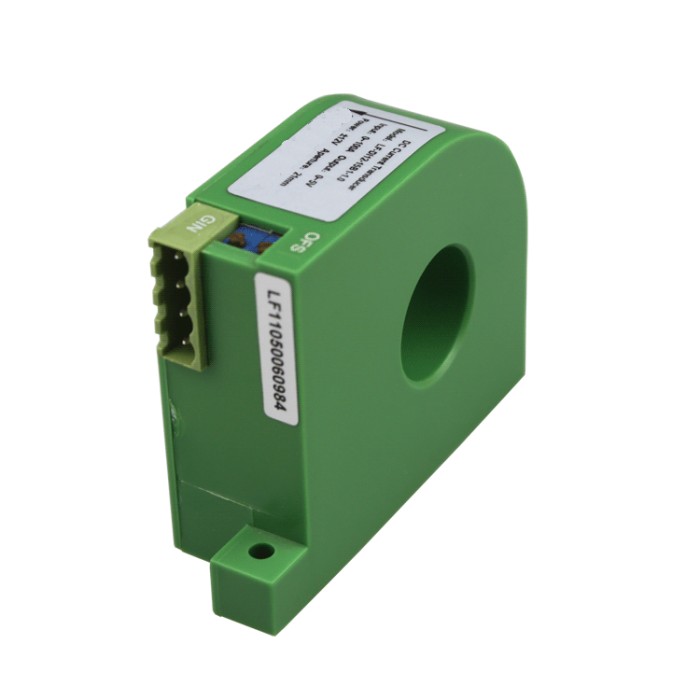

*Hall open-loop operational principle, can measure current in any waveform, the output terminal can reflect the waveforms parameters of input current
*Controlled by temperature compensation circuit, measure accurately
*Perforation input, plug terminal, screw fastening plane mounting
*It widely applies to all kinds of industrial current online detection system
*Dimension(mm):90(L)×26(W)×60(H) aperture:20mm

Specification：

*Standards :IEC688:1992, QB/LF2007-1

*Input Range :0~500A can choose 0~50A,0~100A etc

*Accuracy Grade:≤1.0%.F.S

*Linearity Degree:Better than 0.2%

*Response Time:≤10uS

*Frequency:0~10KHZ

*Offset Voltage:≤20mV

*Temperature Characteristics :≤150PPM/℃（0~50℃）

*Power Consumption:≤30mA+output current

*Isolation Withstanding Voltage AC2.0KV/min*1mA between input/output/ power

*Load Capacity 2 times current continuous, 30 times 1 second

*Flame Retardancy:UL94-V0

*Working Environment: -10℃~50℃,20%~90% without condensation

*Storage Environment: -40℃~70℃,20%~95% without condensation

Model：

*Standards :IEC688:1992, QB/LF2007-1

*Input Range :0~500A can choose 0~50A,0~100A etc

*Accuracy Grade:≤1.0%.F.S

*Linearity Degree:Better than 0.2%

*Response Time:≤10uS

*Frequency:0~10KHZ

*Offset Voltage:≤20mV

*Temperature Characteristics :≤150PPM/℃（0~50℃）

*Power Consumption:≤30mA+output current

*Isolation Withstanding Voltage AC2.0KV/min*1mA between input/output/ power

*Load Capacity 2 times current continuous, 30 times 1 second

*Flame Retardancy:UL94-V0

*Working Environment: -10℃~50℃,20%~90% without condensation

*Storage Environment: -40℃~70℃,20%~95% without condensation

Dimension：

Connection:
