Sensor Mod.

CHB-500S Closed-loop Hall Current Transducer

Description

The SENSOR Module CHB-500S is a closed loop Hall current sensor to measure 500A DC, AC or pulsed currents with a galvanic isolation between the primary and secondary circuits.

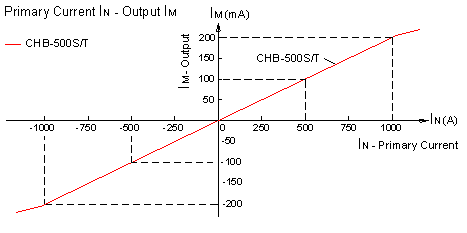

Closed-loop Hall Current Sensor:

Type

Nominal current

Output current

Accuracy

Supply voltage

Aperture

I_N（A）

I_M（mA）

X（%）

Vc（V）

mm

CHB-500S

500

100

±0.5%

±12...24

φ25

Specifications:

Principle

Closed loop Hall effect principle

Input current

500A（DC、AC、Pulsed current）

Output current

100mA

Turns ratio

1:5000

Frequency

DC~100KHz

Accuracy

±0.5%

Response time

<1μS

Linearity

<0.1%

Supply voltage

±12V...24V（±5%）

Consumption

35mA+I_M（Output current）

Isolation voltage

Between primary and secondary circuit: 6KV RMS/50Hz/1min.

Operating temp.

0…+70℃

Applications

The sensors are used in the industry field of power supplies, welding machines, converters,

industry auto-control, motor drives, electronic power system, railways, rectifiers systems etc.

Dimensions(mm) & Connection:

Typical Applications:
