Split Core Current Sensor
SCTK667  Series

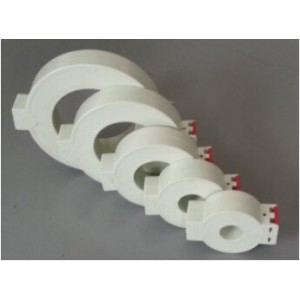

Mini inner diameter is 25mm Split Core CT Current Sensor

Electrical Parameter                   Mechanical Parameter

Frequency:    50-400Hz                                     Case:  PA /UL94-V0

Rated Input:    100A-1000A                              Bobbin:     PA

Measuring range:    5%In-130%In                    Core:    Silicon steel

Rated Output:    5A/1A                                       Internal structure:    Epoxy

Ratio:    ≤ ± 0.5％                                               Construction:     Tie

Phase angle:   ≤ ± 30min                               Operating Temp:    －25℃～＋75℃

Dielectric strength:  2.5KV/1mA/1min               Operating Humidit:    ≤85%

Insulation Resistance:  DC500V/100MΩ min          Output Connection: Terminal

Note: Special requirements parameters can be customized, please indicate the specific input, output parameters, precision, load, wire length, the standard for the terminal output











Frequency:    50-400Hz                         Case:  PA /UL94-V0

Rated Input:    100A-1000A                      Bobbin:     PA

Measuring range:    5%In-130%In                 Core:    Silicon steel

Rated Output:    5A/1A                          Internal structure:    Epoxy

Ratio:    ≤ ± 0.5％                              Construction:     Tie

Phase angle:   ≤ ± 30min                         Operating Temp:    －25℃～＋75℃

Dielectric strength:  2.5KV/1mA/1min               Operating Humidit:    ≤85%

Insulation Resistance:  DC500V/100MΩ min          Output Connection: Terminal

Parameter Technical:
Model	Rated Input (A)	Rated Output (mA/V)	Accurately	Dimension (mm)
				Φ	A	B	C	D
SCTK667B-032	0-630A	1-5A 0-10V 0-500mA	0.1 0.2, 0.5, 1.0	32	110	83	32	32
SCTK667B-055	0-1500A			55	133	106	32	32
SCTK667B-080	0-2000A			80	165	138	32	32
SCTK667B-100	0-3000A			100	195	168	32	32

Note: Special requirements parameters can be customized, please indicate the specific input, output parameters, precision, load, wire length, the standard for the terminal output
