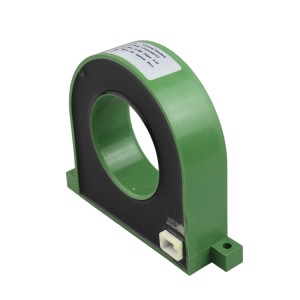

SB7 DC Leakage Current Sensor

SB7 DC Leakage Current Sensor

Bidirection micro current input, aperture:φ50mm; 0~±100mA is optional; screw fastening plane installation;

pull-plug terminal interface...

More details


*Electromagnetic modulation principle, transforms the measured DC micro current into the standard DC voltage output according to the linear proportion
*Controlled by temperature compensation circuit, small thermal drift , measure accurately
*Perforation, plug terminal insert, screw fastening plane mounting
*It widely apply to the branch way power supply of the isolation online detection in DC power supply system
*Dimension(mm):110(L)×25(W)×95(H) aperture: 50mm

Specification

*Input Range:0~±500mA can choose 0~±10mA, 0~±20mA etc

*Accuracy Grade:≤1.0%.F.S

*Linearity Degree:better than 0.2%

*Response Time:≤200mS

*Offset Voltage:≤20mV

*Temperature Characteristics:≤150PPM/℃(0~50℃)

*Power Consumption:≤30 mA

*Isolation Withstanding Voltage:AC2.0KV/min*1mA between input /output/ power

*Load Capacity:2 times current continuous, 30 times current 1 second

*Flame Retardancy:UL94-V0

*Working Environment:-10℃~50℃, 20%~90% without condensation

*Storage Environment:-40℃~70℃, 20%~95% without condensation

Model

A---Output
3: 0~±5V
T: Special output
B---power supply
5: ±12V±10%
6: ±15V±10%
C---Current input range

Model selection1: LF-MI11-35B7-1.0/0~±10mA
Explanation: this product is a 0~±10mA input range, 0~±5V output,
±12V power supply, B7 style DC leakage current sensor.

Dimension

Connection:
