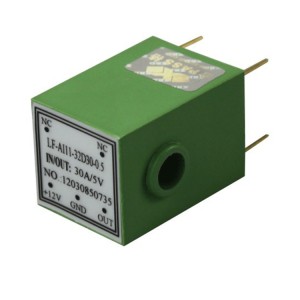

D30 1-phase AC Current Transducer
*Transforms the measured 1-phase AC current into the standard DC voltage or DC current output according to the linear proportion
*Excellent anti-interference ability and high accuracy (0.5%)
*Perforation input, PCB printed circuit board mounting
*It widely applies to all kinds of industrial current online detection system
*Small size, dimension(mm):21(L)×21(W)×28(H) aperture: 6.5mm
Specification:
* Standards:GB/T 13850-1998,IEC688:1992
* Input Range:0~30A can choose 0~10mA,0~5A etc
* Accuracy Grade:≤0.5%.F.S
* Temperature Characteristics:≤100PPM/℃(0~50℃)
* Power Consumption:≤1.0VA
* Working Stability:annual change<0.2%
* Isolation Withstanding Voltage :AC2.0KV/min*1mA between input/output/power
* Isolation Resistance:≥20MΩ(DC500V)
* Impulse Voltage:5KV(peak value),1.2/50uS
* Response Time:≤300mS
*Load Capacity 2 times current continuous, 30 times current 1 second
* Working Environment :-10℃~50℃,20%~90%without condensation
* Storage Environment:-40℃~70℃,20%~95%without condensation
Model:
A﹍Output : 3:0~5V 8:0~10V T:Special output |
B﹍Power supply: 2:12V±10% 3: 15V±10% |
C---Current input range |
Model selection1:LF-AI12-32D30-0.5/0~5A Explanation: this product is a 0~5A input range, 0~5V output, 12V power supply, D30 style1-phase AC current transducer. |
