DC voltage transducer CHZ-4000VN, 6000VN, 8000VN
Sensor Module |
CHZ-4000VN、6000VN、8000VN |
||||
Description |
The SENSOR Module CHZ-VN is a DC voltage transducer to measure 4000V…8000V DC voltages with a galvanic isolation between the primary and secondary circuits. The output of the transduceris a standard DC signal. |
||||
|
|||||
DC Voltage Transducer(Output 0…20mA): |
|||||
Type |
Nominal voltage |
Output current |
Accuracy |
Supply voltage |
Aperture |
VN(V) |
IM(mA) |
X(%) |
Vc(V) |
mm |
|
CHZ-4000VN/A0 |
4000 |
0…20 |
±1.0% |
±15~24 |
Terminals |
CHZ-6000VN/A0 |
6000 |
|
|
|
|
CHZ-8000VN/A0 |
8000 |
|
|
|
|
|
|||||
DC Voltage Transducer(Output 4…20mA): |
|||||
Type |
Nominal voltage |
Output current |
Accuracy |
Supply voltage |
Aperture |
VN(V) |
IM(mA) |
X(%) |
Vc(V) |
mm |
|
CHZ-4000VN/A1 |
4000 |
4…20 |
±1.0% |
±15~24 |
Terminals |
CHZ-6000VN/A1 |
6000 |
|
|
|
|
CHZ-8000VN/A1 |
8000 |
|
|
|
|
|
|||||
DC Voltage Transducer(Output 0…5V): |
|||||
Type |
Nominal voltage |
Output voltage |
Accuracy |
Supply voltage |
Aperture |
VN(V) |
VM(V) |
X(%) |
Vc(V) |
mm |
|
CHZ-4000VN/V0 |
4000 |
0…5 |
±1.0% |
±15~24 |
Terminals |
CHZ-6000VN/V0 |
6000 |
|
|
|
|
CHZ-8000VN/V0 |
8000 |
|
|
|
|
|
|||||
DC Voltage Transducer(Output 1…5V): |
|||||
Type |
Nominal voltage |
Output voltage |
Accuracy |
Supply voltage |
Aperture |
VN(V) |
VM(V) |
X(%) |
Vc(V) |
mm |
|
CHZ-4000VN/V1 |
4000 |
1…5 |
±1.0% |
±15~24 |
Terminals |
CHZ-6000VN/V1 |
6000 |
|
|
|
|
CHZ-8000VN/V1 |
8000 |
|
|
|
|
|
|||||
Specifications: |
|||||
Principle |
Hall effect sensor + Transducer |
||||
Input voltage |
4000V…8000V(DC) |
||||
Output |
One of A0=0~20mA、A1=4~20mA、V0=0~5V、V1=1~5V(DC) |
||||
Frequency |
DC |
||||
Accuracy |
1.0% |
||||
Response time |
<0.35S |
||||
Linearity |
0 .5% |
||||
Supply voltage |
±15V…24V(±5%) |
||||
Consumption |
30mA+IM(Output current) |
||||
Isolation voltage |
Between primary and secondary circuit: 10KV RMS/50Hz/1min. |
||||
Operating temp. |
-25℃ …+85℃ |
||||
Applications |
The sensors are used in the industry field of power supplies, welding machines, converters, |
||||
|
industry auto-control, motor drives, electronic power system, railways, rectifiers systems etc. |
||||
|
|||||

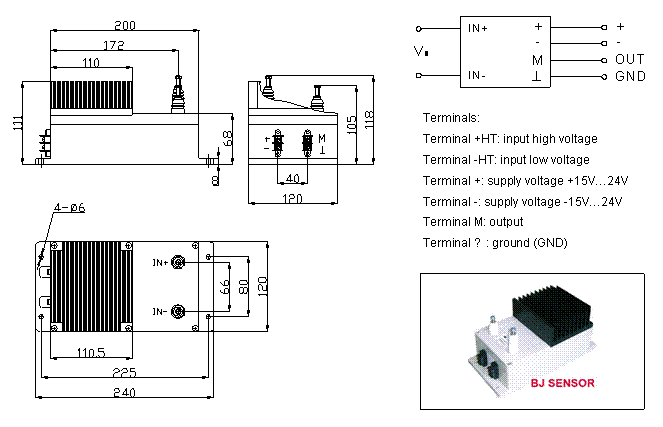

Dimensions(mm) & Connection: |
|||||
|
