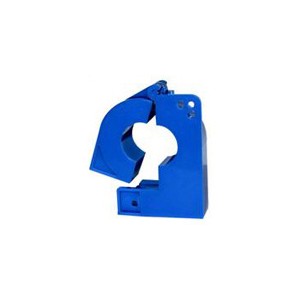

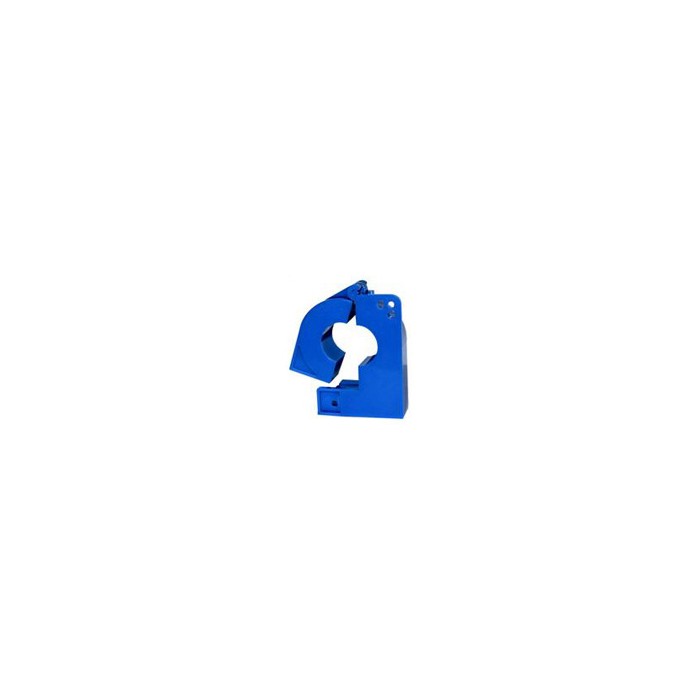

Name/Model: | Open-loop Hall current transducer CHK-*R1 |
---|---|
Rated input Parameter: | DC, AC or pulsed 50A~500A current / Split core / ¢21mm |
SENSOR MODULE CHK-20R1~500R1 |
|||||
The SENSOR Module CHK-20R1~500R1 is an open loop Hall current sensor to measure 20A…500A DC, AC or |
|||||
pulsed currents with a galvanic isolation between the primary and secondary circuits. |
|||||
|
|||||
Open-loop Hall Current Sensor: |
|||||
Type |
Nominal current |
Output voltage |
Accuracy |
Supply voltage |
Aperture |
IN(A) |
VM(V) |
X(%) |
Vc(V) |
mm |
|
CHK-20R1 |
20 |
±4 |
±1.0% |
±12~15 |
¢21 |
CHK-50R1 |
50 |
Split core |
|||
CHK-100R1 |
100 |
||||
CHK-200R1 |
200 |
||||
CHK-300R1 |
300 |
||||
CHK-400R1 |
400 |
||||
CHK-500R1 |
500 |
||||
|
|||||
Specifications: |
|||||
Principle |
Open loop Hall effect principle |
||||
Input current |
20…500A(DC、AC、Pulsed current) |
||||
Output voltage |
±4V |
||||
Frequency |
DC~20KHz |
||||
Accuracy |
±1.0% |
||||
Response time |
<10μS |
||||
Linearity |
<1.0% |
||||
Supply voltage |
±12~15V(±5%) |
||||
Consumption |
25mA |
||||
Isolation voltage |
Between primary and secondary circuit: 5KV RMS/50Hz/1min. |
||||
Operating temp. |
-10…+70℃ |
||||
Mounting on |
Fastening on panel |
||||
Applications |
Power supplies, welding machines, converters, industry auto-control, motor drives, |
||||
For industry |
electronic power system, railways, rectifiers systems etc. |
||||
